Drop In Galvo Laser Alignment Guides

25mm Galvo Laser Alignment Guide Set

Take the guesswork out of laser alignment and speed up your production
workflow with these precision-fit alignment guides.

Designed for galvo laser fixture plates that use a 25mm grid pattern, these
guides allow you to quickly and consistently position materials for
engraving, marking, and batch production. Whether you're engraving business
cards, leather patches, dog tags, keychains, coasters, or other products,
these guides help create repeatable setups and reduce wasted time.

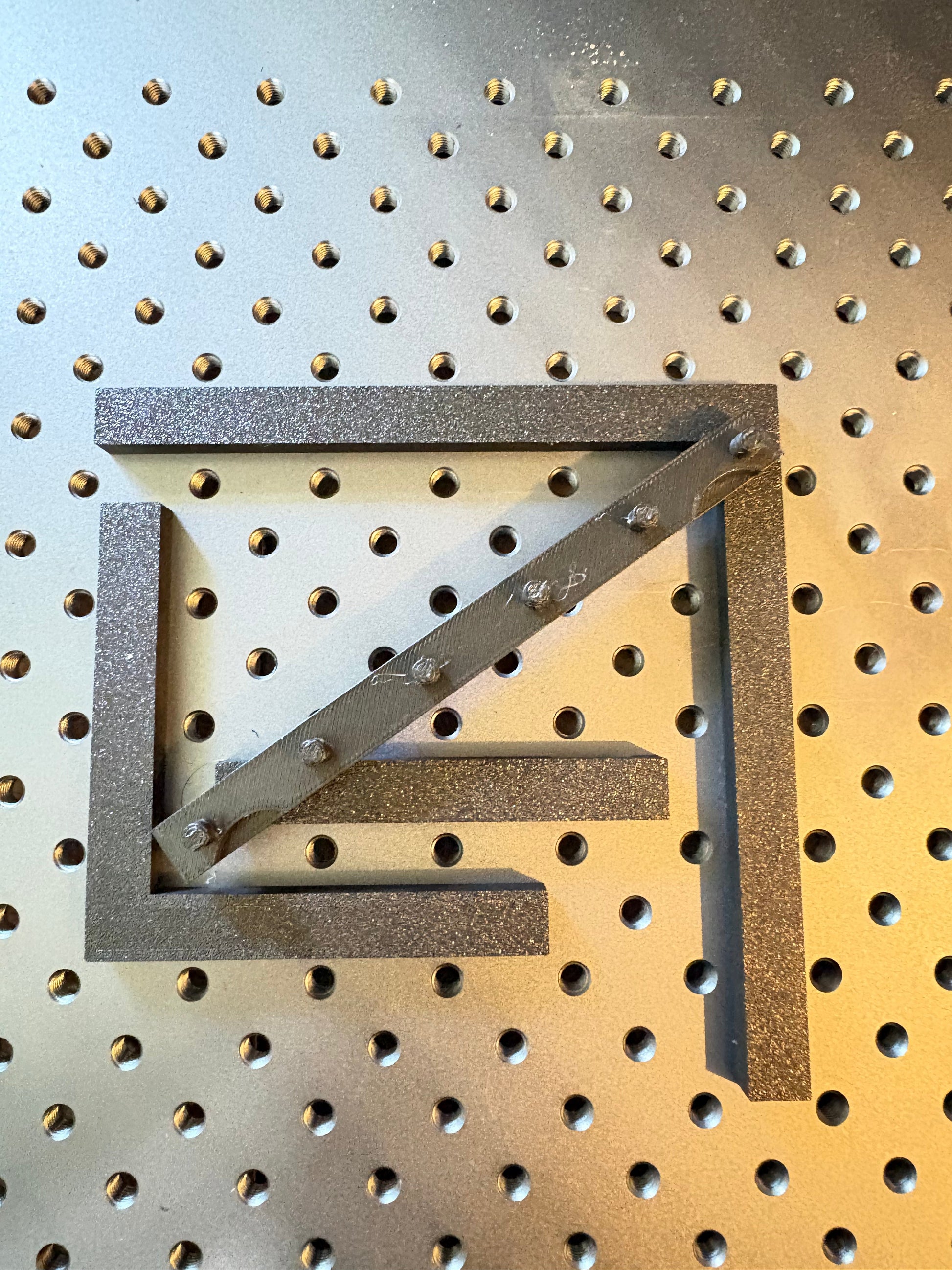

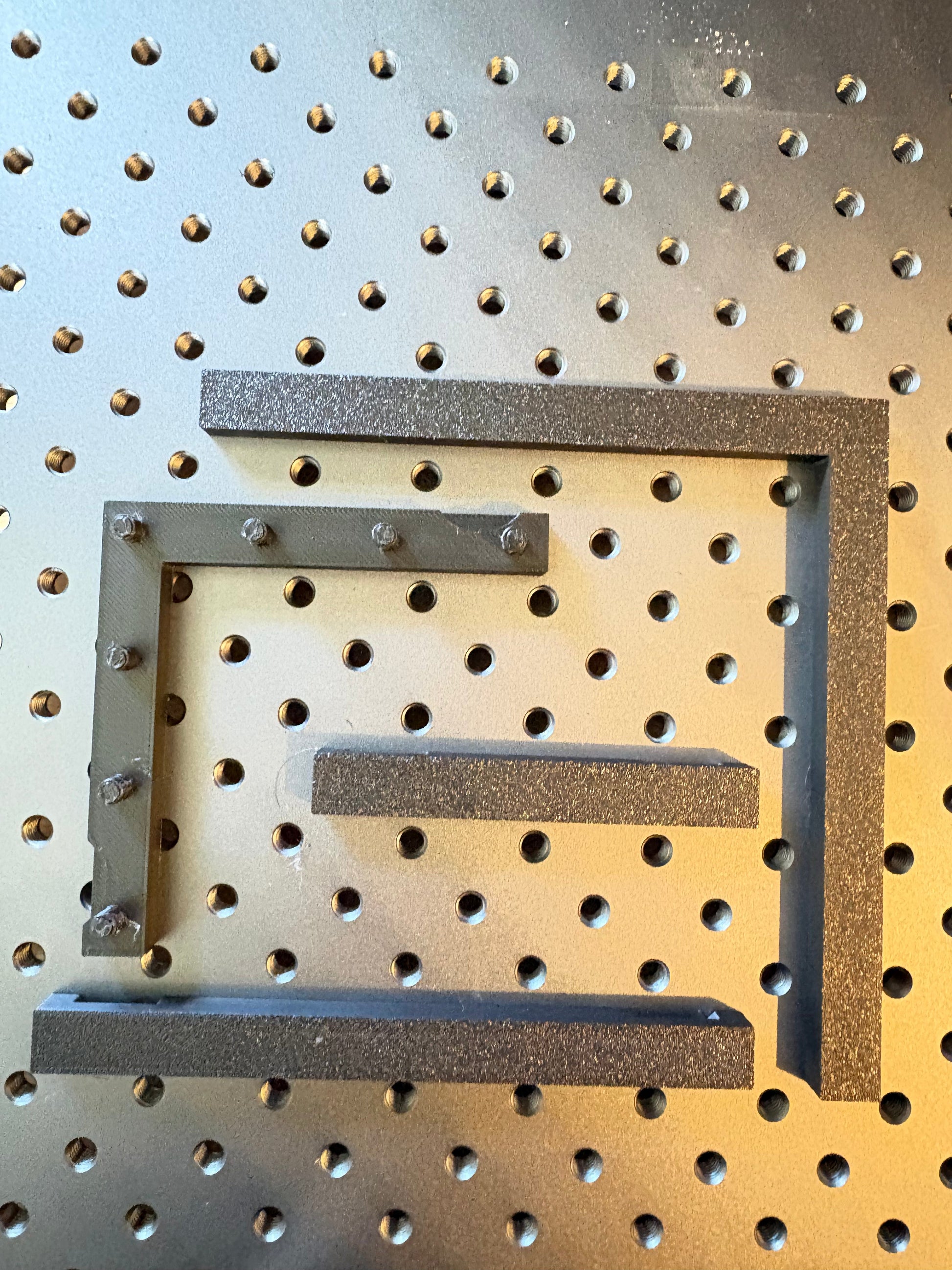

Each guide features chamfered locating pegs that securely fit the fixture
plate while remaining easy to install and remove. Integrated finger relief
cutouts on the underside make it simple to lift the guides from the bed
when changing setups.

Features

✔ Designed for 25mm fixture plate systems

✔ Precision-fit 5mm locating pegs

✔ Chamfered peg design for easy installation and removal

✔ Underside finger reliefs for quick removal

✔ Durable one-piece construction

✔ Extended body design with no overhanging pegs

✔ Perfect for repeatable laser engraving setups

✔ Made in East Texas by Willow Hat & Promo Co.

Standard Set Includes (4 Pieces)

• • 1 × 3" Straight Guide
• • 1 × 5" Straight Guide
• • 1 × 3" Corner Guide
• • 1 × 5" Corner Guide

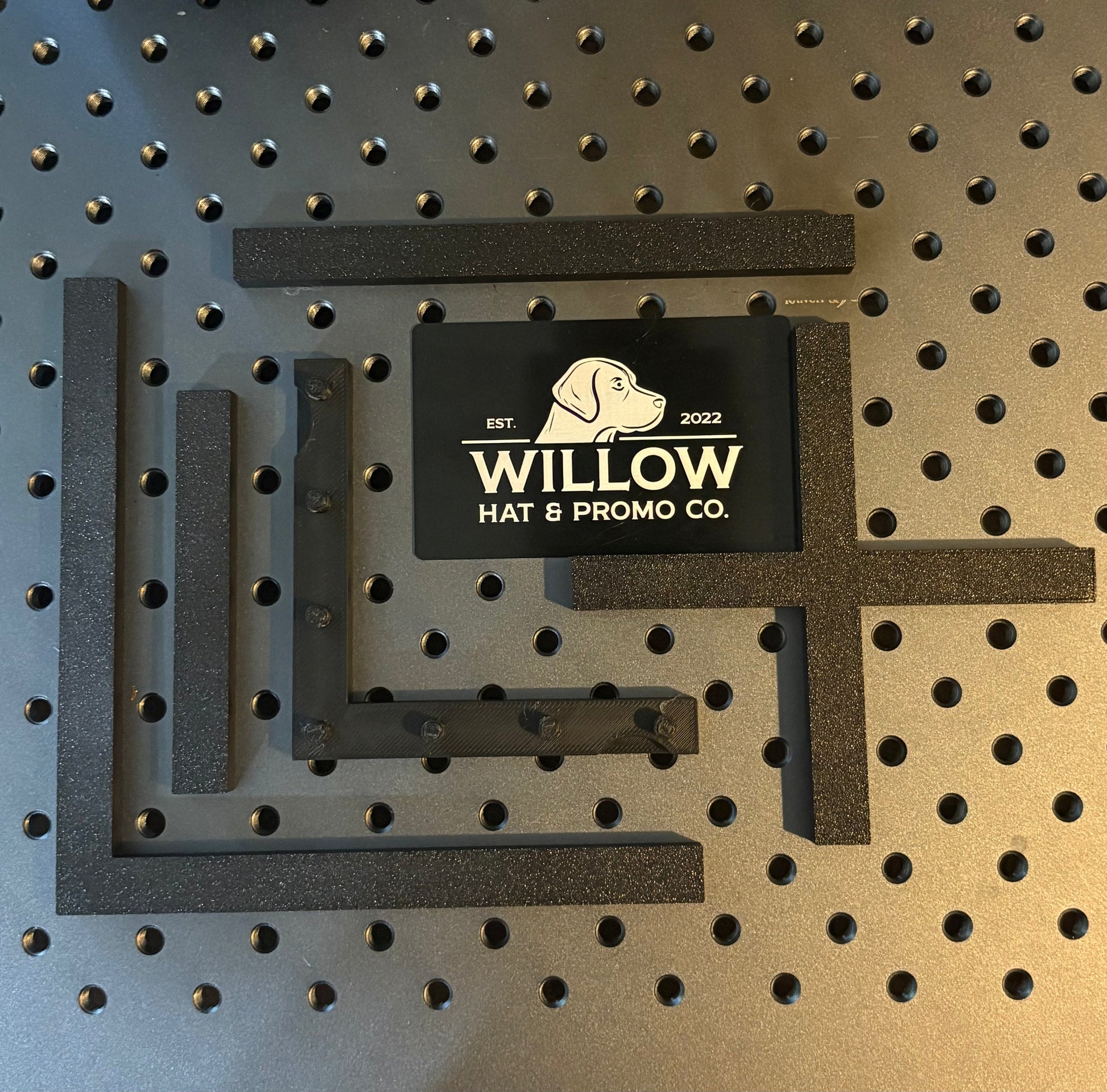

Premium Set Includes (5 Pieces)

• • 1 × 3" Straight Guides
• • 1 × 5" Straight Guides
• • 1 × 3" Corner Guides
• • 1 × 5" Corner Guides
• • 1 × 3" Cross Guide

Compatibility

Designed for many galvo laser fixture plates utilizing a 25mm hole spacing
pattern, including many systems from ComMarker, OMTech, Monport, Cloudray,
Haotian, and other compatible 25mm fixture plates.

Please verify your fixture plate spacing before ordering.

Material

3D printed from durable, high-quality filament for long-lasting shop use.

Laser, fixture plate, and workpieces shown in photos are not included.
